(1) Technical Principle

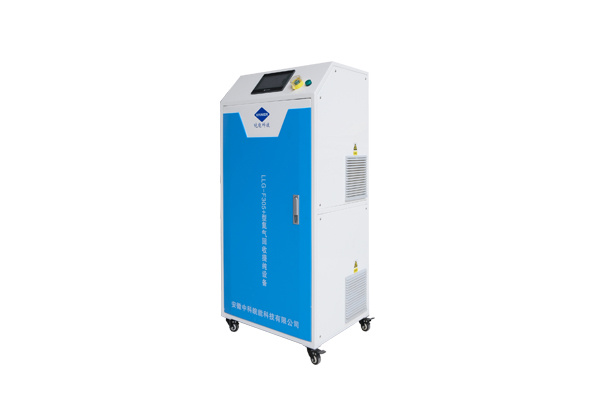

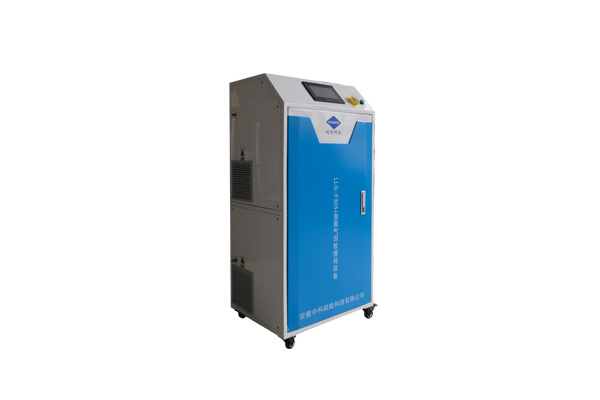

Developed and upgraded from the LLG-F305 model based on advanced membrane separation + adsorption technology, it combines the low loss of membrane separation technology with the high throughput characteristics of adsorption technology for the separation and purification of gases such as helium and hydrogen.
(2) Product Features
Patent product with purification efficiency up to 95%.
High Purity Refinement: Meets the purification requirements for >5.0% raw helium (hydrogen) gas, providing a stable supply of over 99.9% pure helium to satisfy various industry needs.
Advanced Intelligence: Features an excellent human-machine interface with real-time cloud-based monitoring and operation.
(3) Application Fields
Optical fiber manufacturing, leak detection production, scientific research tail helium recovery, hydrogen recovery, and more.
(4) Parameters
| Rated processing capacity number | Capacity | 30 L/min |
| Raw gas helium content | Input Purity | ≥40.0%He |
| Purified helium purity | Output Purity | ≥99.0%He |
| Purification efficiency | Recovery | ≥90.0% |
| Dimensions (mm) | Dimension | 550*500*1200mm |
| Weight | Weight | 120 KG |
| Power Consumption | Power | 1 kW |
